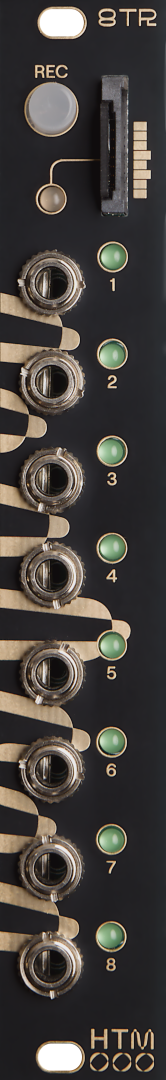

8TR

8TR is a high quality, eight audio channel multitrack recorder.

• Recording quality up to 24 bit, 48kHz
• AC coupled inputs, full ±12V range
• Input VU meter per channel
• Tracks are recorded as a single multichannel .WAV file
• No recording length limit except total memory available
• 32GB uSD card included, about 7 hours recording at 24/48
• Memory warning LED
• Connect several 8TR together for sample accurate start and stop
• Skiff friendly

Equivalent Input Noise:
Unweighted RMS: -106dBFS
A-weighted RMS: -110dBFS

Frequency Response 20 Hz – 20 kHz: ±0.2 dB

THD (1kHz, 5Vpp): typ. 0.002%

Crosstalk (1kHz, 5Vpp): typ. -115dB

The 9J expander provides copies of the eight inputs, as well as a gate input to start and stop the recording.
